FRAME

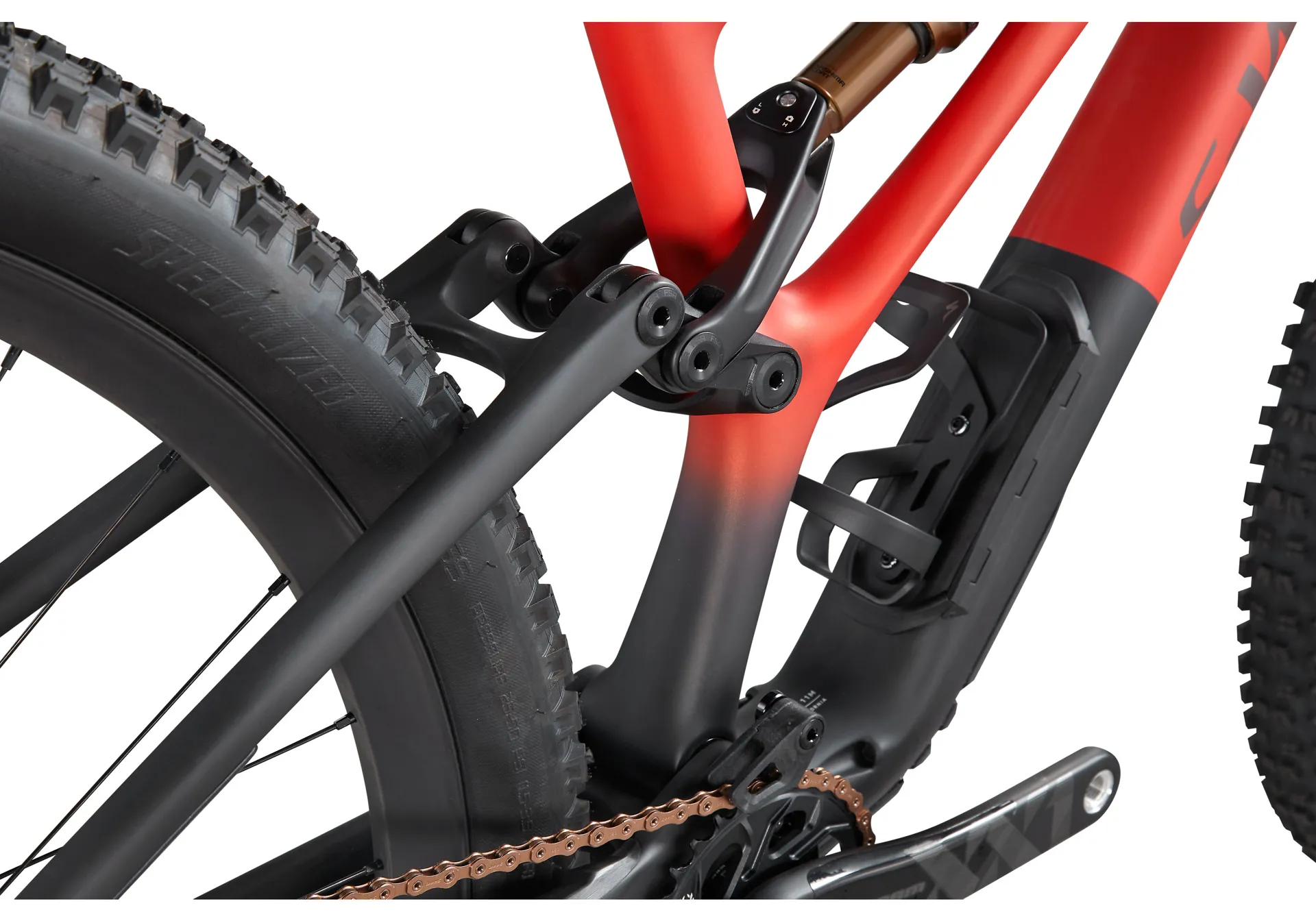

FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
SEAT BINDER
Alloy, 38.6
SWAT
SWAT™ Door integration
REAR SHOCK
FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm
FORK
FOX FLOAT 34 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 140mm of travel

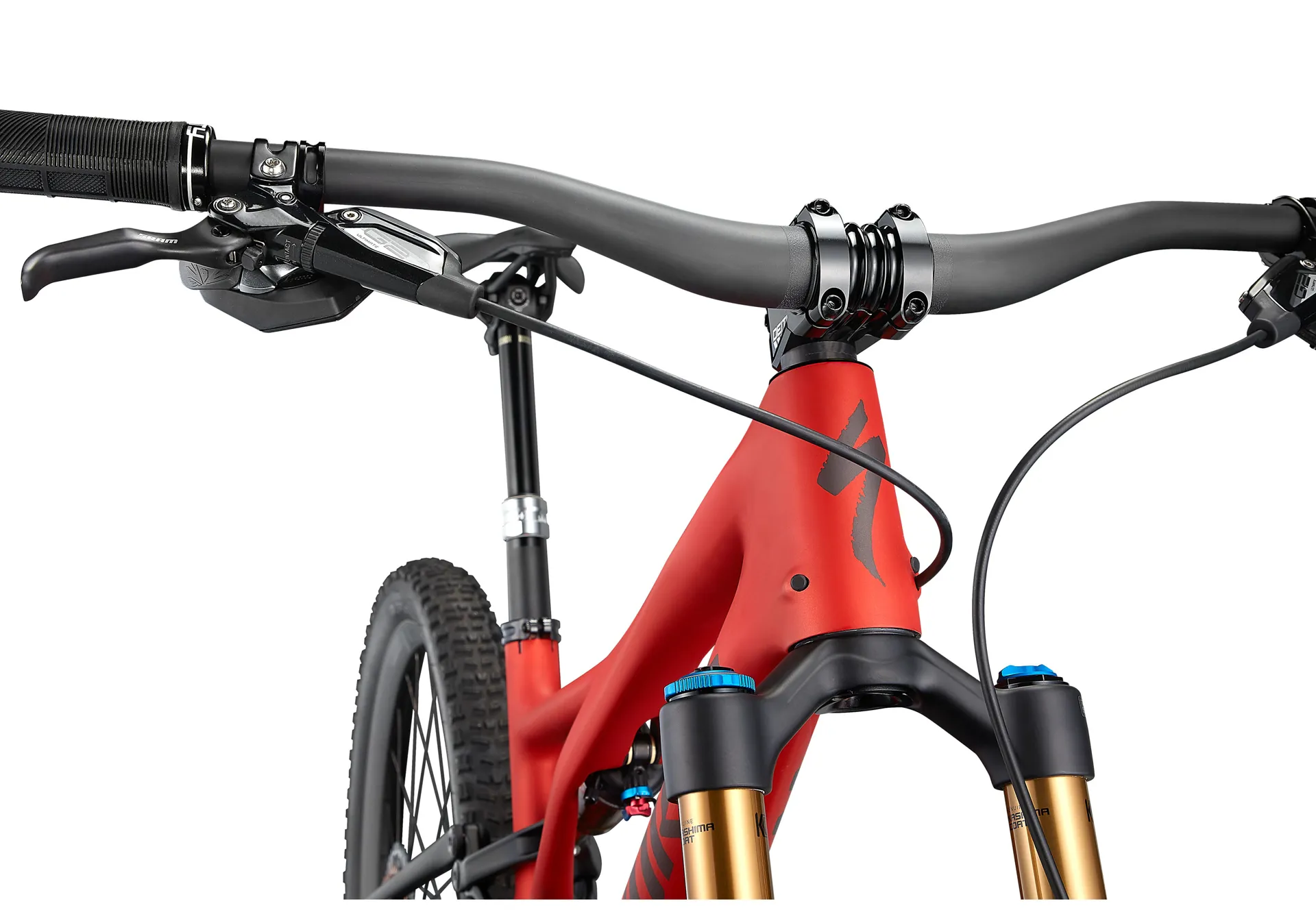

STEM
Deity Copperhead, 35.0mm

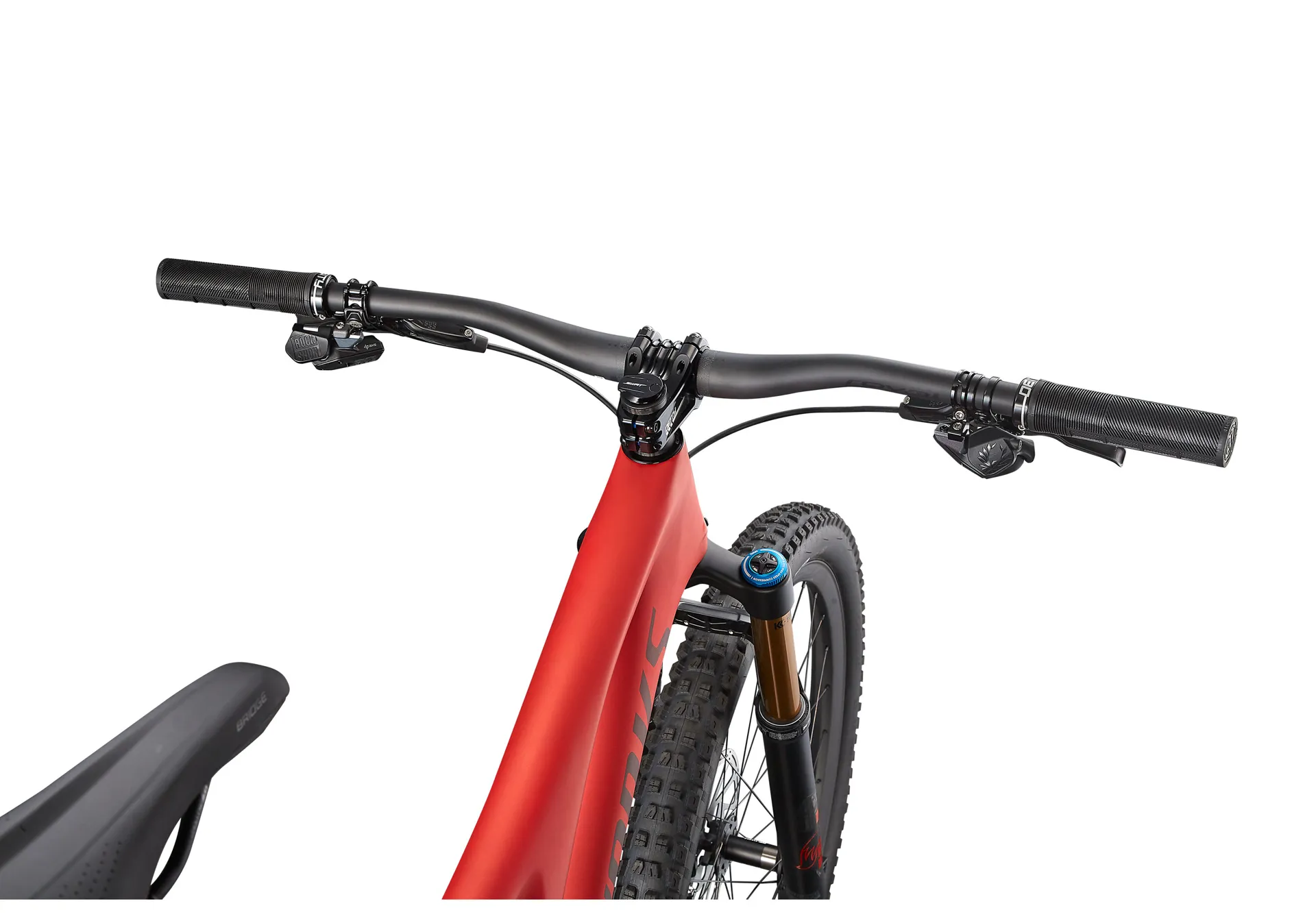

HANDLEBARS
Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 35mm
GRIPS
Deity, Knuckleduster, Black
SADDLE
Bridge, 155/143mm, Hollow Ti-rails
SEATPOST
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
FRONT BRAKE
SRAM G2 ULTIMATE, 4-piston caliper, hydraulic disc, 200mm
REAR BRAKE
SRAM G2 ULTIMATE, 4-piston caliper, hydraulic disc, 180mm
REAR DERAILLEUR
SRAM XX1 Eagle AXS
SHIFT LEVERS
SRAM XX1 Eagle AXS
CHAIN
SRAM XX1, 12 speed
CRANKSET
SRAM XX1 Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm
CHAINRINGS
Steel, 30T
FRONT HUB
DT Swiss 240, sealed cartridge bearings, 15x110mm spacing, 28h
REAR HUB
DT Swiss 240, Ratchet EXP, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
SPOKES
DT Swiss Competition Race
FRONT TIRE
Butcher, GRID casing, GRIPTON® compound, 29x2.3"
REAR TIRE
Purgatory, GRID Casing, GRIPTON® compound, 29x2.3"
INNER TUBES
Standard, Presta valve
RIMS
Roval Control 240, hookless carbon, 29mm inner width, hand-built, 2Bliss Ready
