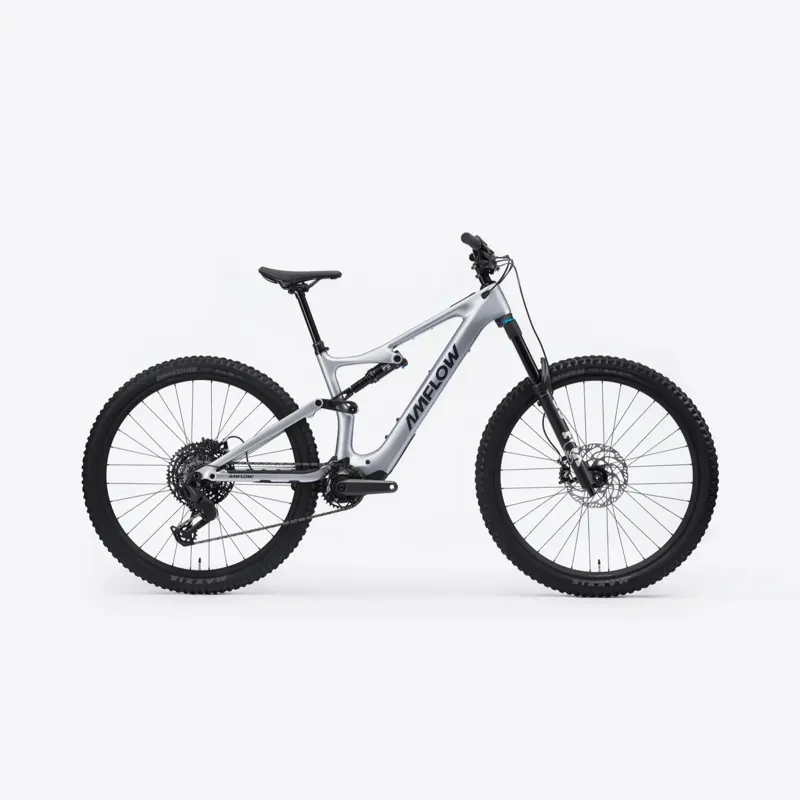

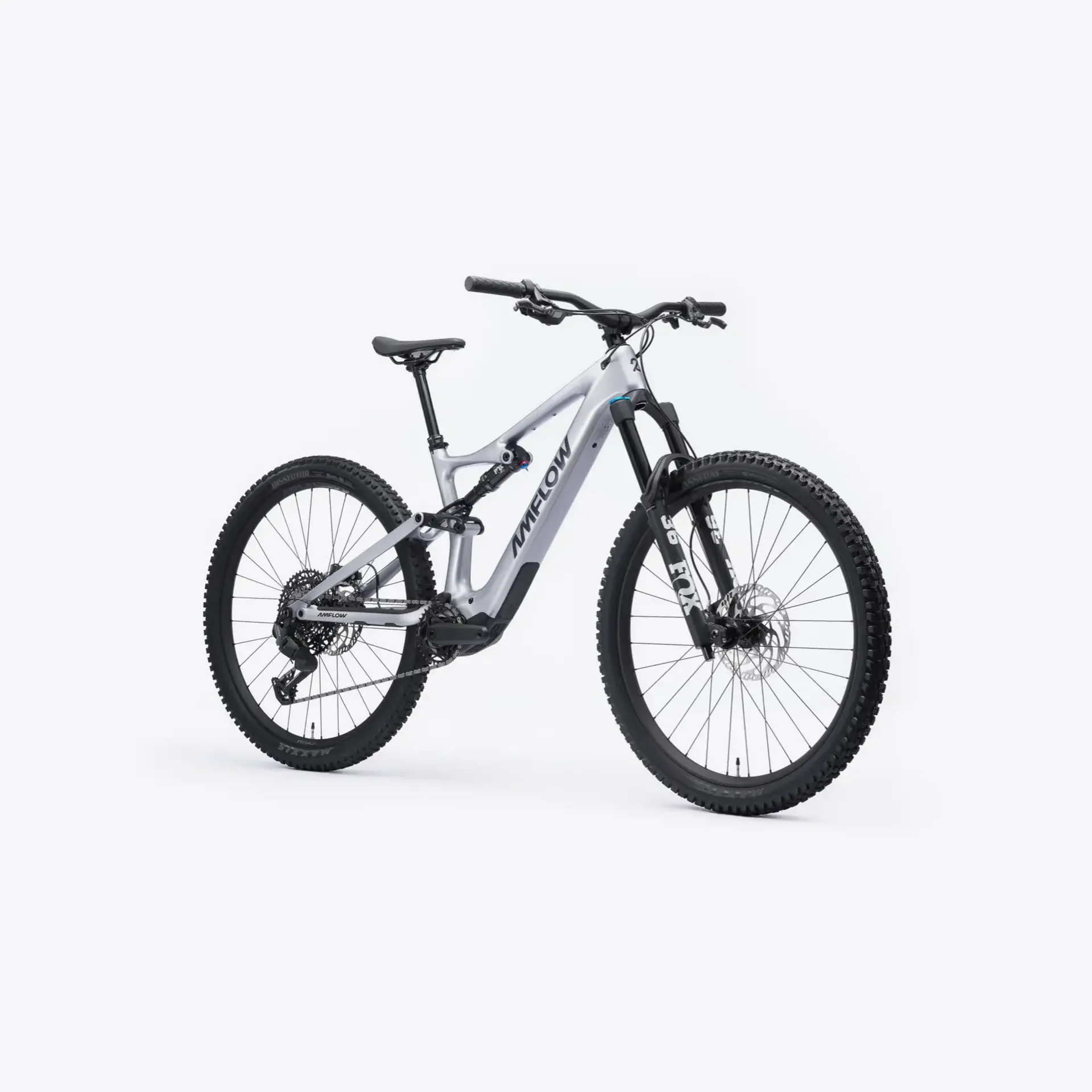

Amflow PL Carbon 800wh

Season:2025

Brand:Amflow

Code:AMF-PLC-800

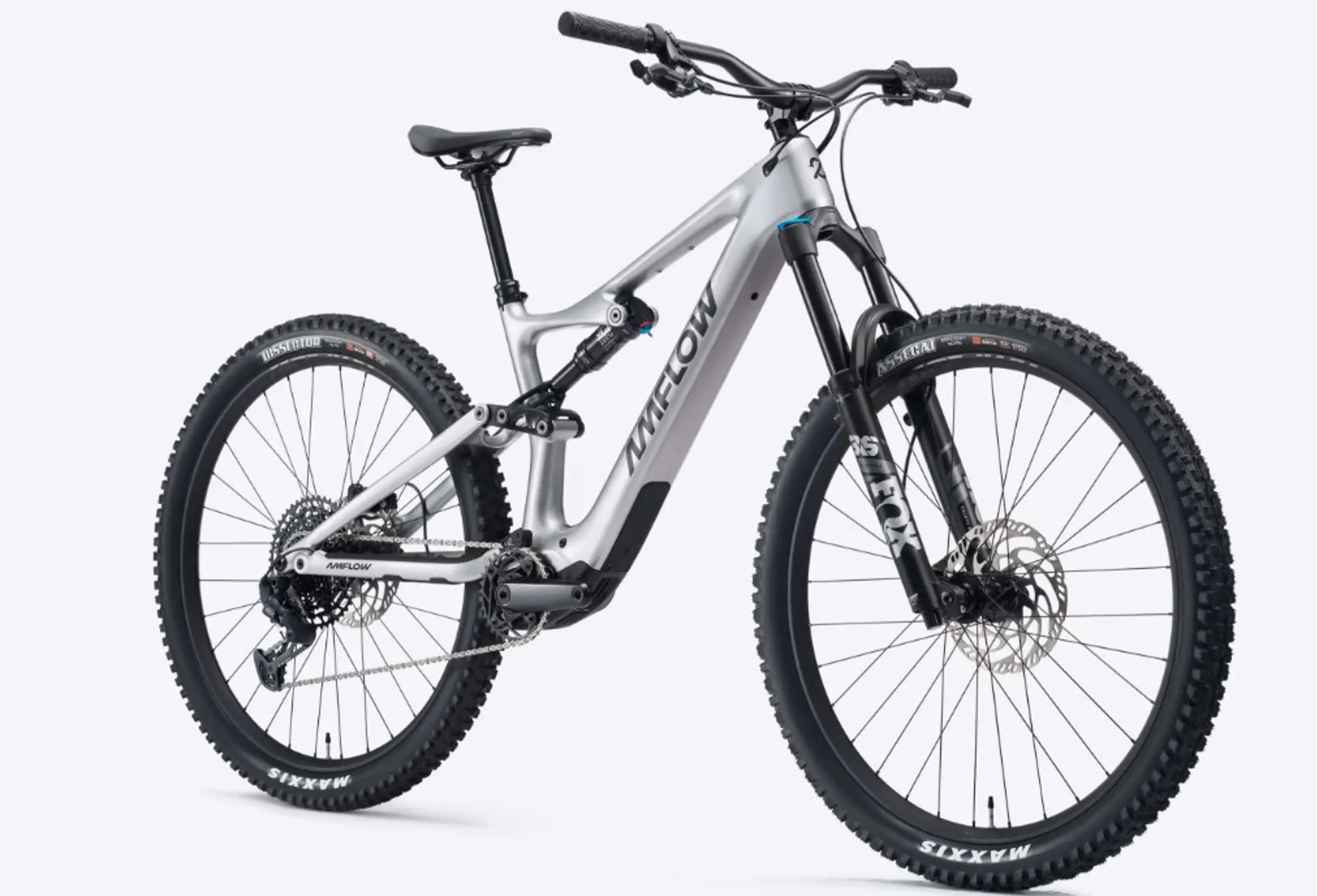

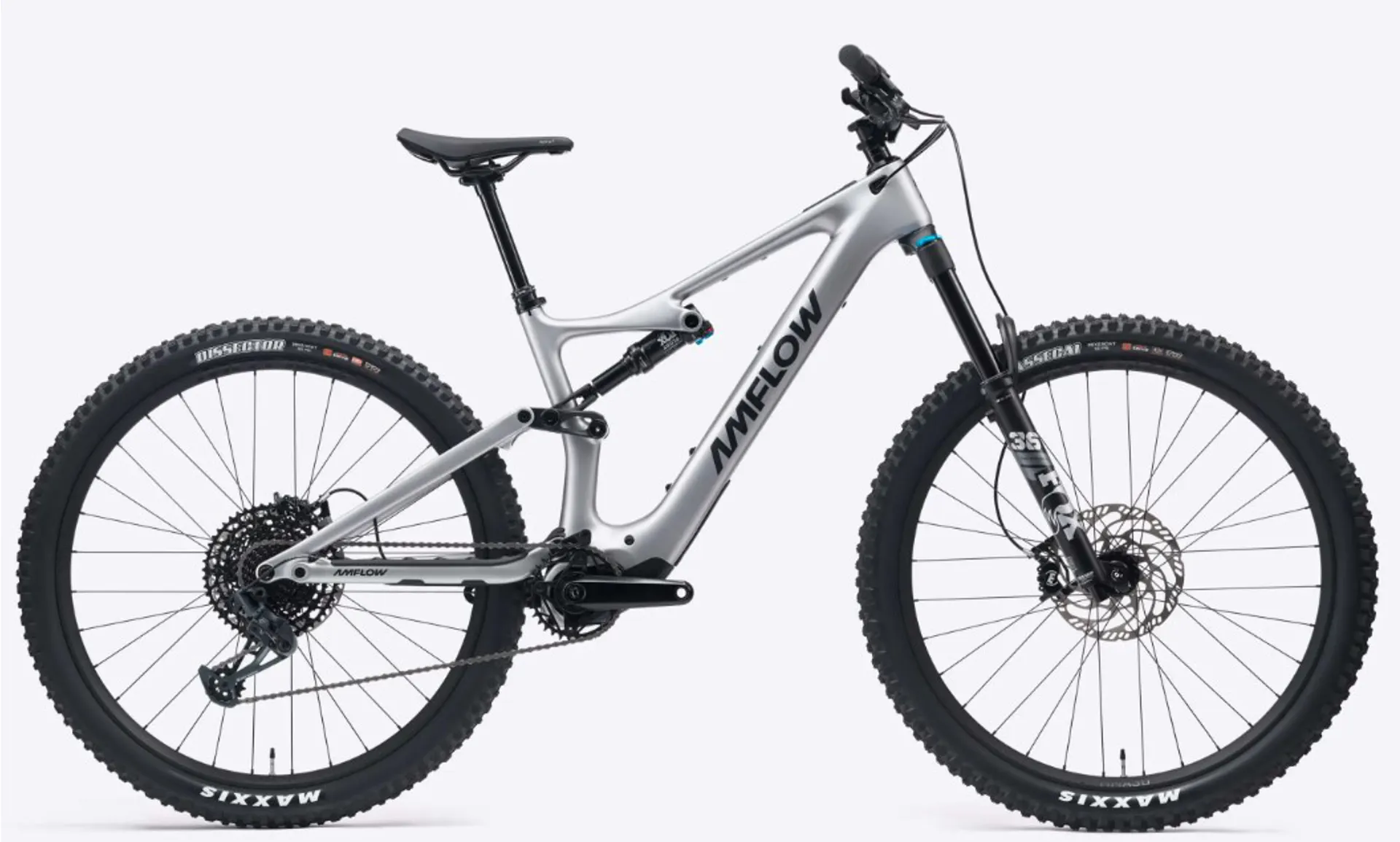

The Amflow PL electric mountain bike offers850 wattsof peak power in an ultra-light build weighing19.2 kg.^[1]With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers.

A full-power eMTB with a stunningly lightweight body. Meticulously designed and crafted to deliver the ultimate ride.
Amflow PL's ultra-light carbon fiber frame weighs just2.27 kg,^[2]for breathtaking speed and agility.

gility.

Drive Assistance

Powerful Drive, Smooth Assistance

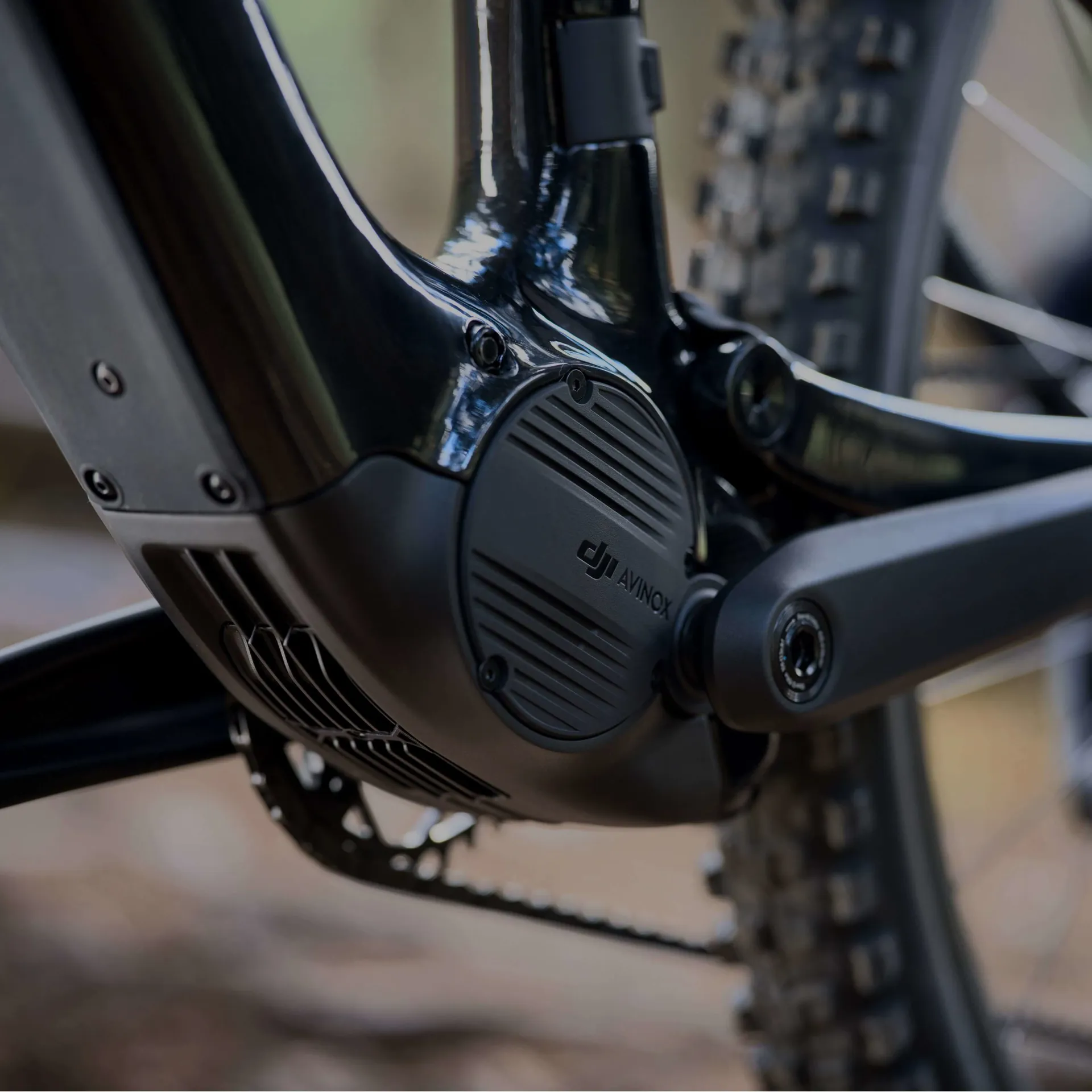

Designed and manufactured by DJI, the Avinox Drive System is seamlessly integrated into Amflow PL, infusing the type of cutting-edge hardware and software that has made DJI an industry leader in drones and camera stabilization technology. The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio.

The durable, high-strength polymer material inside the Avinox M1 Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced DJI algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.

Max Continuous Torque

105 N·m

M1 Drive Unit Weight

2.52 kg^[2]

Peak Power

850 W

Tackle any terrain with confidence.

Five Modes, Targeted Assistance

In addition to traditional assistance modes of Eco, Trail and Turbo, the DJI Avinox Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. ^[3] Once enabled, Auto mode empowers users to tackle a wide variety of terrain types and gradients without having to switch modes.

For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque and 1000W high-power assistance. ^[4]

Intelligent Walk Assist, Effortless Control

Amflow PL's Walk Mode features intelligent walk assistance for easy incline traversing, Auto Hold to prevent rollback on slopes, and Hill Start Assist for additional torque to get you started on inclines. It also allows stationary gear shifting for a smooth and intuitive experience.

Battery and Range

High-Capacity Battery, Extended Range

The Avinox Drive System's battery weighs just 2.87 kg^[2]and features ultra-high energy density for extended range.

800Wh

Range

157 km^[5]

Weight

3.74 kg^[2]

Intelligent Battery Health, Extended Service Life

Amflow PL features a battery health management system for real-time monitoring, self-discharge, active voltage reduction, and abnormality alerts. Batteries are durable and reliable. After 500 full charge-discharge cycles, the battery still maintains 80% of its initial capacity.^[6]

GaN 3x FastCharging^[7]

The palm-sized fast charger is capable of charging the battery from 0% to 75% in just 1.5hours.^[8]

0% to 75% in

1.5 hours^[8]

Geometry and Handling

Agile and Responsive, All-round Performance

Versatile Geometry to Dominate Terrain

Amflow PL's frame design features cutting-edge geometry, offering balanced performance that's both lightweight and hyper-agile. This dynamic handling empowers riders to easily take on rugged trails and more technical rides.

Head Tube Angle

A 64.5° head tube angle paired with a 44mm rake allows for more sensitive shock absorption and reduces the forward shift of the center of gravity during heavy braking.

Seat Tube Angle

A 77° seat tube angle enables a more balanced rider weight distribution between the front and rear wheels, facilitating easier handling on challenging climbs.

Chainstay Length

The 445mm chainstay length offers nimble handling while still accommodating a 29-inch wheelset, enhancing the bike's obstacle-clearing capabilities.

Sizing Information

Size	Height (cm)	Height (inch)
M	162 - 178	5'4 - 5'10''
L	170 - 185	5'7 - 6'1''
XL	175 - 191	5'9 - 6'3''
XXL	185 - 201	6'1 - 6'7''

Professional Opinion

Geometry

		M	L	XL	XXL
A	Reach	452mm	475mm	500mm	525mm
B	Stack Height	618mm	628mm	641mm	655mm
C	Standover Height	780mm	785mm	790mm	795mm
D	Front Center	782mm	810mm	844mm	873mm
E	Fork Length	570mm	570mm	570mm	570mm
F	Wheelbase	1227mm	1255mm	1289mm	1318mm
G	Chainstay Length	445mm	445mm	445mm	445mm
H	Bottom Bracket Drop	29mm	29mm	29mm	29mm
I	Bottom Bracket Height	345.5mm	345.5mm	345.5mm	345.5mm
J	Effective Top Tube Length	595mm	620mm	648mm	676mm
K	Head Tube Angle	64.5°	64.5°	64.5°	64.5°
L	Head Tube Length	105mm	115mm	130mm	145mm
M	Actual Seat Tube Angle	70°	70°	70°	70°
N	Effective Seat Tube Angle	77°	77°	77°	77°
O	Seat Tube Height	430mm	450mm	470mm	500mm
