5010 is built to serve the most technical backcountry missions.
5010 is built to serve the most technical backcountry missions.
Santa Cruz

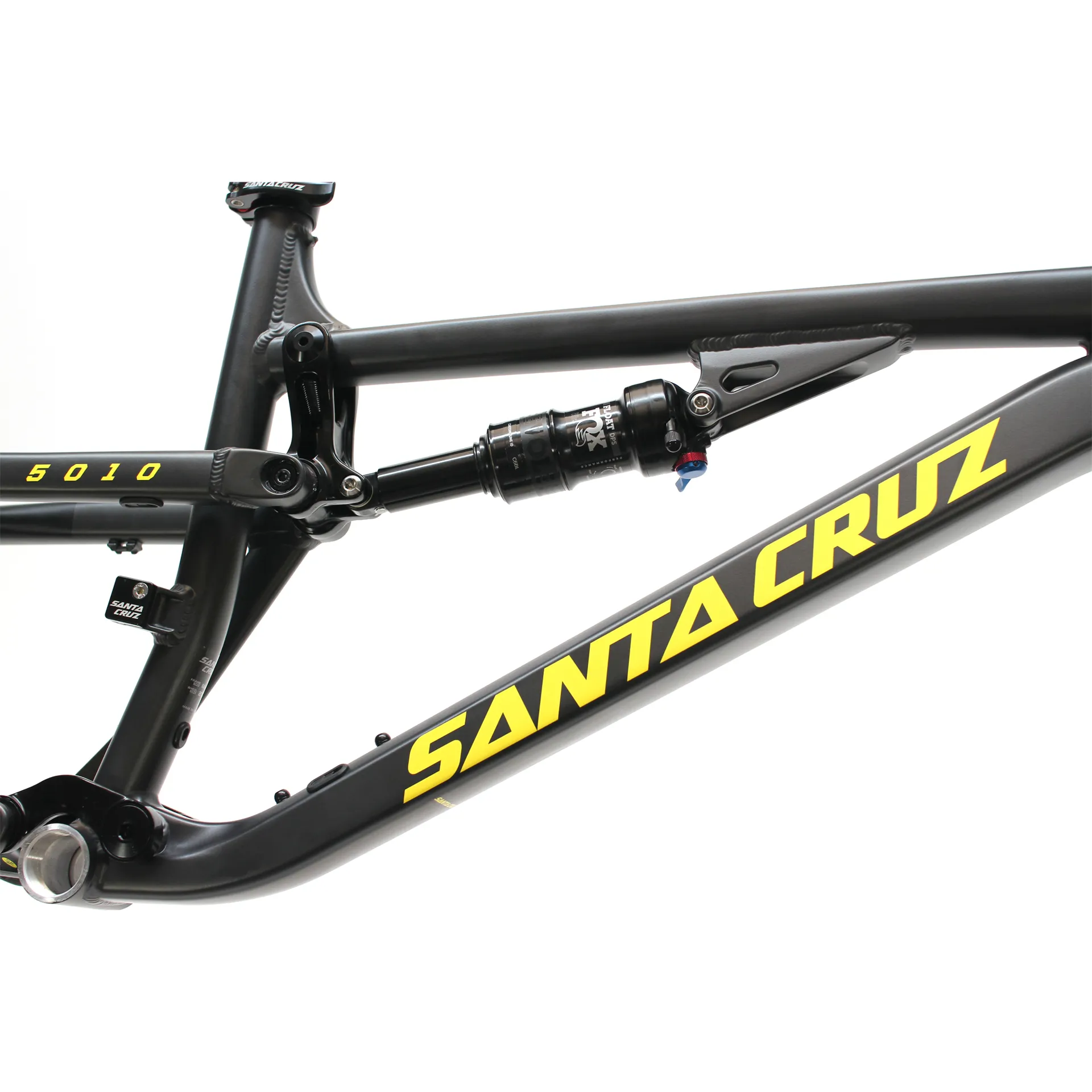

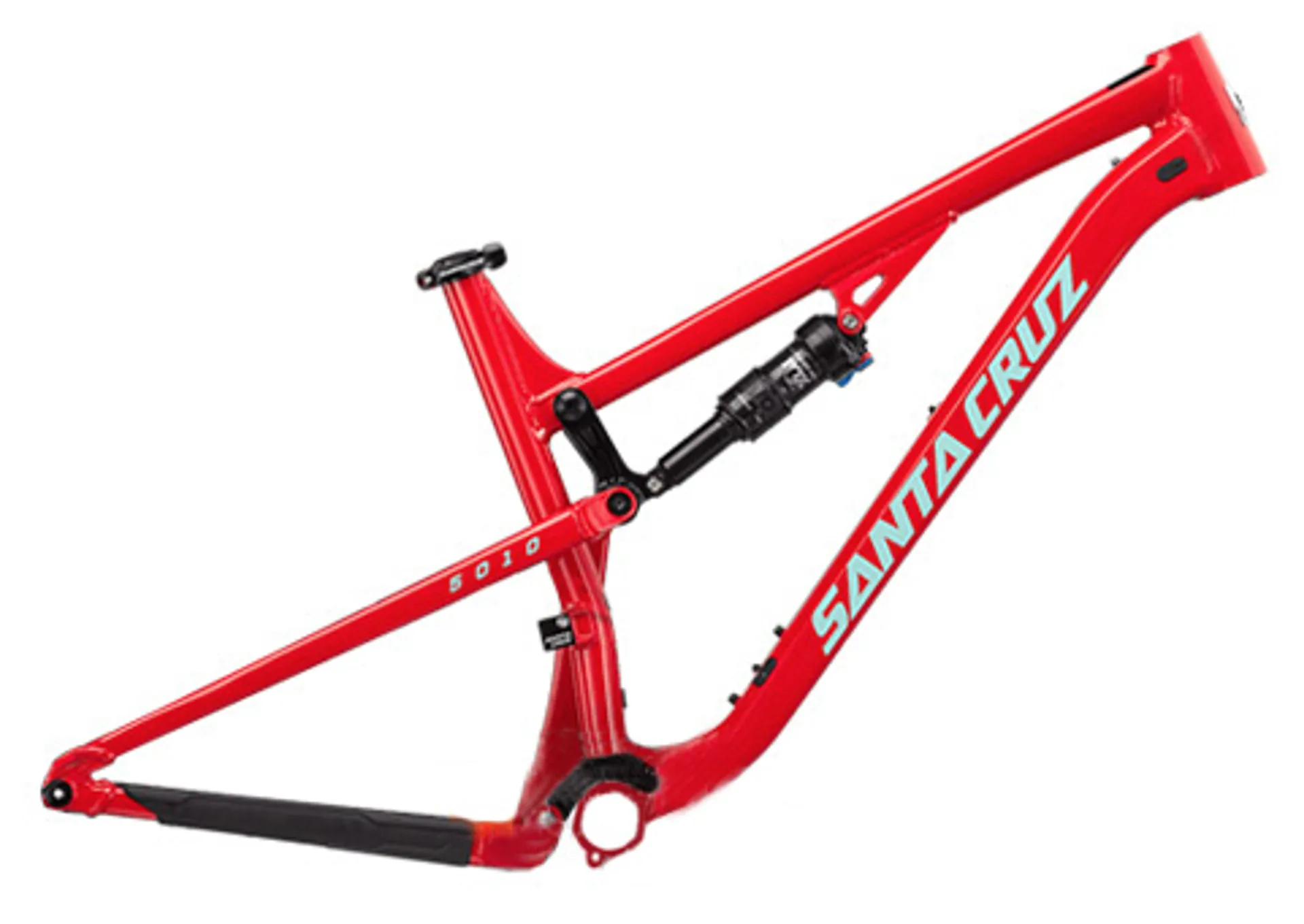

Santa Cruz 5010 Alloy Frame

£1,699.00
I'm a Pre-launch Product. Find out more
Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Returns: We hope everything arrives to you as expected.  If a order(s) is broken or spoiled when it is delivered then you should notify us as soon as possible or in any case within 7 days of delivery, otherwise the returns policy becomes invalid.

You will have the option of returning the whole order or just the affected items. Please notify us by email on northwestmtb@aol.com or by calling the shop on 0161 428 3311 & include pictures of the damaged box/packet & product and we will deal with it quickly.

Please return using a signed for delivery service like Royal Mail or a Courier that requires a signature on receipt by one of our staff.

For purchased in store products, returns, refunds or exchanges are only available in store using the same payment method as purchase.

All refunds under this returns policy will be paid within 2/5 days of us receiving the merchandise at the shop in it's original packaging to prevent any further damage.

Santa Cruz 5010 Alloy Frame

Season:All Year

Brand:Santa Cruz

Code:SC-5010-AL

130mm of VPP® (Virtual Pivot Point) travel produces a shorter chainstay length and lower BB height compared to the 5010’s bigger travel brethren. This creates a uniquely playful character and an insatiable appetite for negotiating steep rocky climbs.

And when it’s time to head home, playtime becomes a riot. The new 5010 has a more aggressive 67 degree head tube angle than before, and the longer top tube welcomes the use of shorter stems for more precise handling and greater confidence on rapid descents.

The 5010 also shares all the latest VPP® hardware with the new Bronson too. The top-tube-mounted box-section upper link is a leap forward in durability and stiffness, and the lower link rests cleanly out of the way, dramatically improving clearance and minimizing rock strikes.

Bike choice can be a numbers game, but if your game is conquering epic trails then 5010 is the only number you need know.

FRAME FEATURES

  • 130mm VPP™ suspension
  • 148mm Rear Axle Spacing
  • 27.5" wheels
  • Forged upper and lower links
  • Double sealed pivots for long bearing life
  • Dual grease ports on lower link for easy maintenance
  • Angular contact bearings maximize stiffness
  • Collet axle pivots lock in place without pinch bolts
  • Bottle cage mount within front triangle fits piggyback shocks
  • Molded rubber swingarm and downtube protection
  • Stealth and external seatpost cable routing
  • Threaded Bottom Bracket
  • Direct mount rear derailleur option
Sizing Information

All measurements reflect installation of a fork with a 519mm axle-to-crown height.

5010 Geometry
  S M L XL
Top Tube Length 576mm - 22.6" 598mm - 23.5" 621mm - 24.4" 654mm - 25.7"
Seat Tube Length 395mm - 15.6" 420mm - 16.5" 450mm - 17.7" 495mm - 19.5"
Head Tube Angle 67° 67° 67° 67°
Seat Tube Angle 73.8° 73.8° 73.8° 73.8°
BB Height 334mm - 13.1" 334mm - 13.1" 334mm - 13.1" 334mm - 13.1"
Wheelbase 1117mm - 44.0" 1141mm - 44.9" 1165mm - 45.9" 1199mm - 47.2"
Head Tube Length 100mm - 3.9" 110mm - 4.3" 120mm - 4.7" 130mm - 5.1"
Chainstay Length 425mm - 16.7" 425mm - 16.7" 425mm - 16.7" 425mm - 16.7"
Standover Height 711mm - 27.9" 717mm - 28.2" 719mm - 28.3" 732mm - 28.8"
Reach 405mm - 15.9" 425mm - 16.7" 445mm - 17.5" 475mm - 18.7"
Stack 585mm - 23.0" 595mm - 23.4" 604mm - 23.7" 613mm - 24.1"



* Effective top tube
** Seat Tube length measured from center of BB to top of seat tube
